Power Bundle (7 kV)

Power Bundle (7 kV)


The SIGLENT Power Bundles are designed to help provide all you need for power supply design and debugging in one simple part number.

Click the Power Bundle Datasheet for more information.

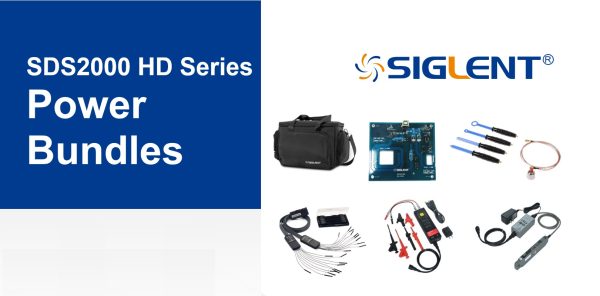

The Basic Power Bundle Essentials, 7 kV includes the following:

  • SDS2000HD-16LA MSO function (software)
  • SPL2016 Logic Probe, 16-channel, 500MSa/s
  • SDS2000HD-FG 25MHz built-in function generator option (software)
  • SDS2000HD-PA Power Analysis: Power Quality, Current Harmonics, Inrush Current, Switching Loss, Slew Rate, Modulation, Output Ripple, Turn On/Off, Transient Response, PSRR, Efficiency
  • DF2001A Deskew fixture for voltage and current probes
    CP6030A 100MHz; Maximum continuous current 30Arms; Peak current 50A; Switching ratio:5A/30;
  • DPB5700A 100MHz; Maximum input differential voltage 7000V(DC + Peak AC)
  • SRF5030T Three magnetic field near-field probe 30MHz ~ 3GHz
  • BAG-S2

Out of Stock - Estimate 8 week lead time. Siglent Representative will contact you with anticipated ship date after order.

SKU: SDS2000HD-PAES-1A Category:

Additional information

Weight 16 lbs
Dimensions 17 × 14 × 22 in
