Description
- Max Output Frequency 25 MHz
- Dual channel, maximum output amplitude 20 Vpp
- 1 GSa/s Sampling rate, 16-bit vertical resolution
- Arbitrary wave length 8 Mpts/CH
- Multi-pulse output function
- Supports PRBS up to 40 Mbps
SDG1022X Plus
SDG1022X Plus
$424.00

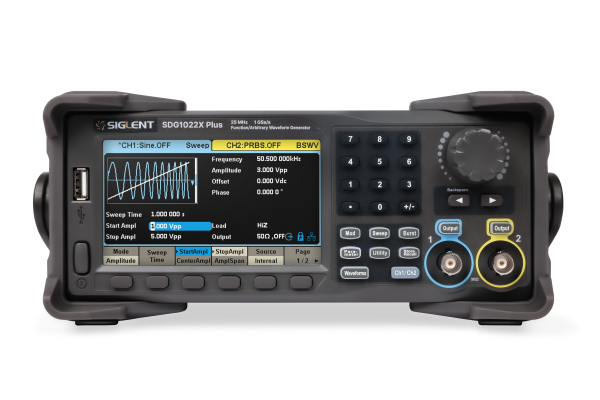

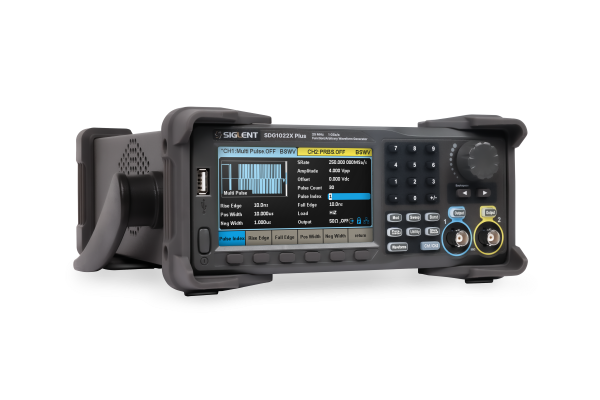

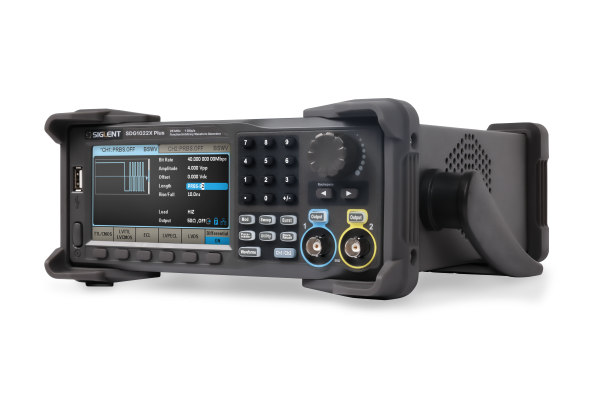

SIGLENT’s SDG1022X Plus dual-channel function/arbitrary waveform generator, with a maximum bandwidth of 25 MHz, has excellent sampling system indicators of 1GSa/s sampling rate and 16-bit vertical resolution.
Inventory Available on or about 12/10/25
Additional information
| Weight | 9.7 lbs |
|---|---|
| Dimensions | 10.25 × 11.64 × 4.22 in |
