SNA5000A Vector Network Analyzer

  • Frequency range: 9 kHz – 8.5 GHz and 100 kHz – 26.5 GHz
  • Frequency resolution: 1 Hz
  • Setting Range of Output Level: -55 ~ +10 dBm
  • Dynamic Range: 125 dB
  • 2/4-ports: S-parameters, Balance Measurements, Time Domain
  • Measure: Q-factor, bandwidth and Insertion Loss
  • Power source calibration compatible with R&S NRPxxA/AN and Keysight U2000A/B series USB power meters
  • Compatible with several manufacturers ECal kits (contact us for more information)

Product Overview

The SIGLENT SNA5000A series of Vector Network Analyzers have a frequency range of 9 kHz to 8.5 GHz and 100 kHz to 26.5 GHz, which support 2/4-port scattering parameter, differential-parameter, and time-domain parameter measurements. The SNA5000A series of VNAs are effective instrumentation for determining the Q-factor, bandwidth, and insertion loss of a filter, They feature impedance conversion, movement of measurement plane, limit testing, ripple test, fixture simulation, and adapter removal/insertion adjustments. The VNAs have five sweep types: Linear-Frequency mode, Log-Frequency mode, Power-Sweep mode, CW-Time mode, and Segment-Sweep mode. The SNA5000A series VNAs also support scattering-parameter correction of SOLT, SOLR, TRL, Response, and Enhanced Response for increased flexibility in R&D and manufacturing applications.

Series Frequency Range Ports Dynamic Range Trace Noise Range of Output Price
SNA5002A 9 kHz~4.5 GHz 2 125 dB 0.003 dB rms,0.03° rms -55 ~ +10 dBm $8,690 Request a Quote
SNA5004A 9 kHz~4.5 GHz 4 125 dB 0.003 dB rms,0.03°rms -55 ~ +10 dBm $16,490 Request a Quote
SNA5012A 9 kHz~8.5 GHz 2 125 dB 0.003 dB rms,0.03°rms -55 ~ +10 dBm $18,990 Request a Quote
SNA5014A 9 kHz~8.5 GHz 4 125 dB 0.003 dB rms,0.03°rms -55 ~ +10 dBm $28,590 Request a Quote
SNA5022A 100 kHz~13.5 GHz 2 125 dB 0.003 dB rms,0.03°rms -55 ~ +10 dBm $30,860 Request a Quote
SNA5032A 100 kHz~26.5 GHz 2 125 dB 0.003 dB rms,0.03°rms -55 ~ +10 dBm $36,460 Request a Quote

Key Features

  • Frequency range: 9 kHz – 8.5 GHz and 100 kHz – 26.5 GHz
  • Frequency resolution: 1 Hz
  • Level resolution: 0.05 dB
  • Range of IFBW: 1 Hz~10 MHz
  • Setting range of output level:
    -55 dBm ~ +10 dBm
  • Dynamic range: 125 dB
  • Types of calibration: Response calibration, Enhanced Response calibration, Full-one port calibration, Full-two port calibration, Full-three port calibration, Full-four port calibration, TRL calibration
  • Types of measurement: Scattering-parameter measurement, differential-parameter measurement, receiver measurement, time-domain parameter analysis, limit test, ripple test, impedance conversion, fixture simulation, adapter removal/insertion, spectrum analysis frequency offset, scalar mixer measurement,pulse measurement, material measurement, gain compression measurement, vector mixer measurement
  • Internal Bias-Tee connections
  • Interface: LAN, USB Device, USB Host (USB-GPIB)
  • Remote control: SCPI/ Labview/ IVI based on USB-TMC / VXI-11 / Socket /Telnet / WebServer
  • 12.1-inch touch screen
  • Video output: HDMI

Need more information? Call us now 877-515-5551

Product Characteristics

Low noise floor for accurate measurements with a wide dynamic range View more

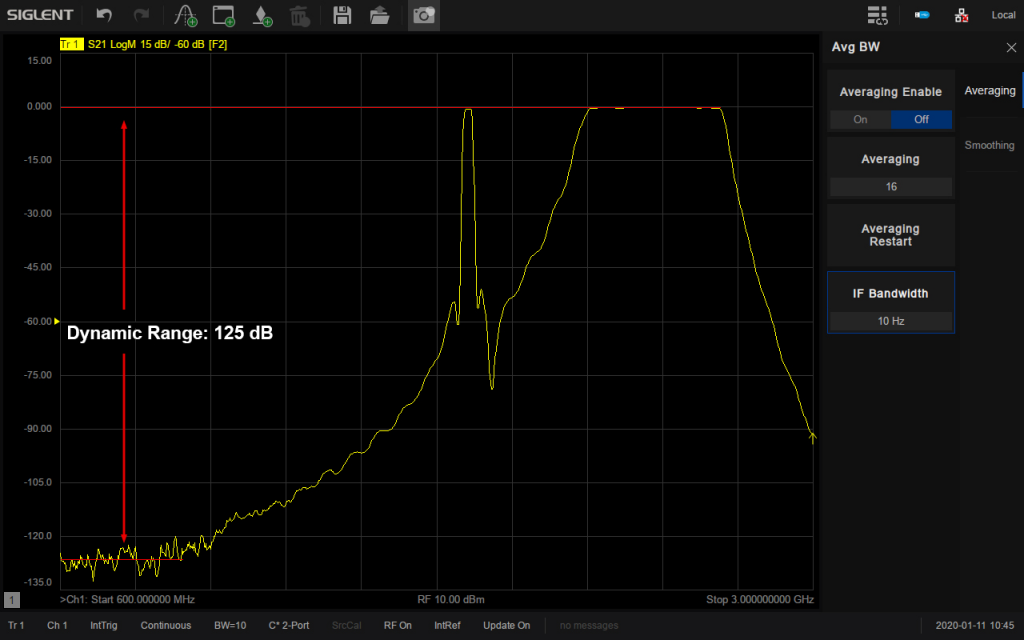

Low noise floor for accurate measurements with a wide dynamic range

Low noise floor for accurate measurements with a wide dynamic range

The SIGLENT SNA5000A series’ dynamic range can be up to 125 dB@10 Hz. Ideal for challenging measurements like simultaneous measurement of a filters in- and out-of-band transmission.

S-parameters and Balance Measurement View more

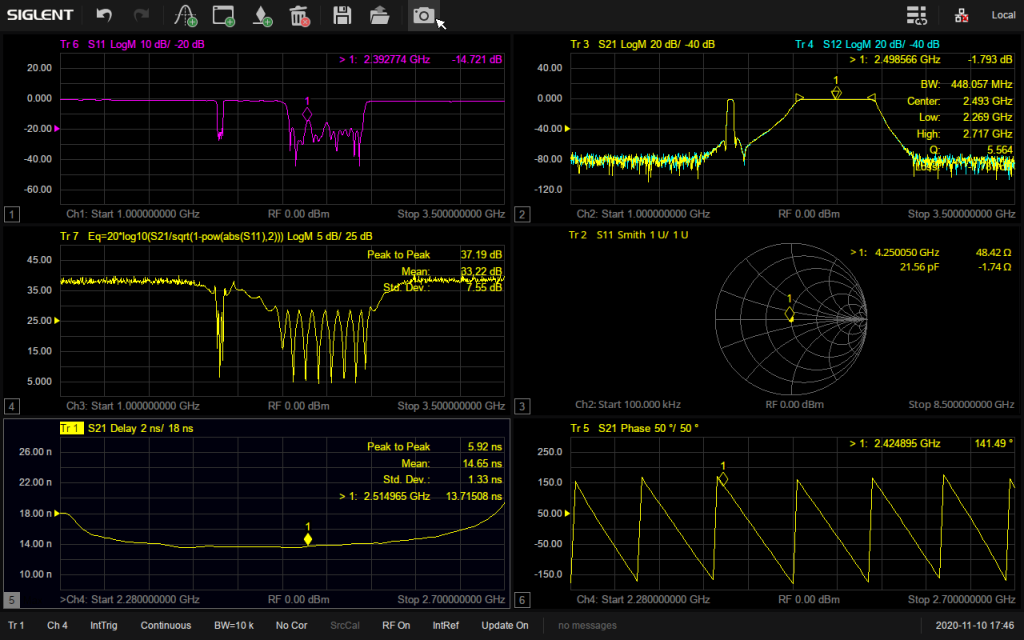

S-parameters and Balance Measurement

S-parameters and Balance Measurement

The large SNA display provides ample room for viewing multiple traces and formats including: Log Mag, Lin Mag, Phase, Delay, Smith, SWR, and Polar. Built for fast transmission/ reflection tracking, load match, and directivity analysis. Traces can be saved as references or adding limits for pass/fail tests to improve the efficiency during the antennas test and filter test.

Enhanced Time-Domain Analysis (TDR) View more

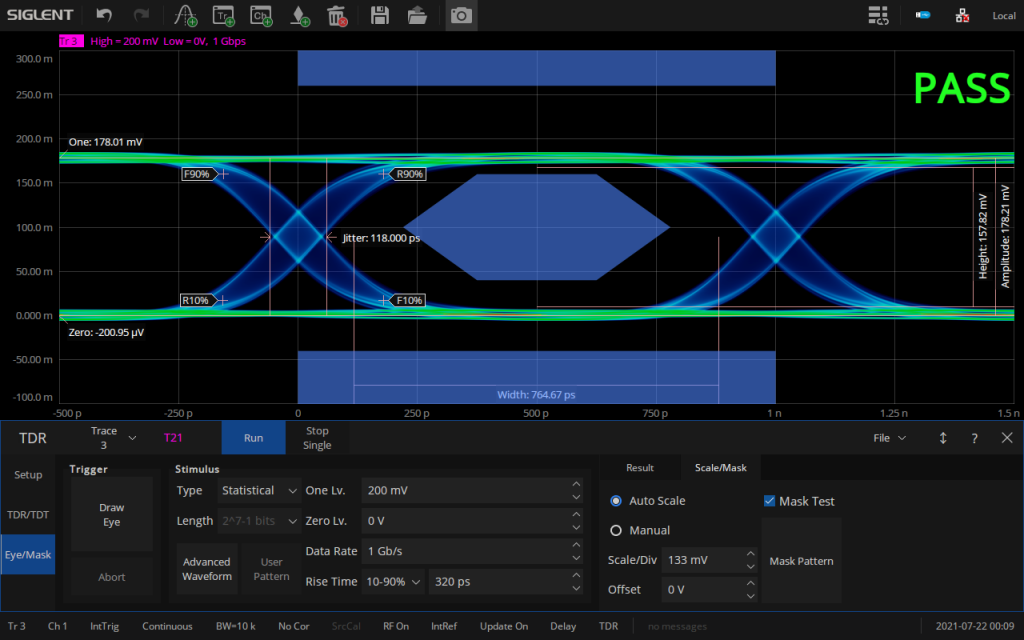

Enhanced Time-Domain Analysis (TDR)

Enhanced Time-Domain Analysis (TDR)

SNA5000A VNAs support Enhanced Time Domain Analysis to measure impedance versus distance, to distinguish between inductive and capacitive transitions. With time-domain gating, we can isolate various sections of the fixture and see the effects in the frequency domain. Another application for TDR is fault-location for coaxial cables in cellular and CATV installations.

Embedding and De-Embedding View more

Embedding and De-Embedding

Embedding and De-Embedding

There is a great challenge in RF & Microwave area to eliminate the harmful fixture effects effectively. In most cases, the test result contains the features of effect, because the specific effect connected the test terminal of instrument and input terminal of the device during SMD testing. The SNA5000A applied kinds of methods to minimum the effect caused by fixture effect, includes port extension, port matching, port impedance conversion, de-embedding, adapter removal, etc.

Large Display Small Footprint View more

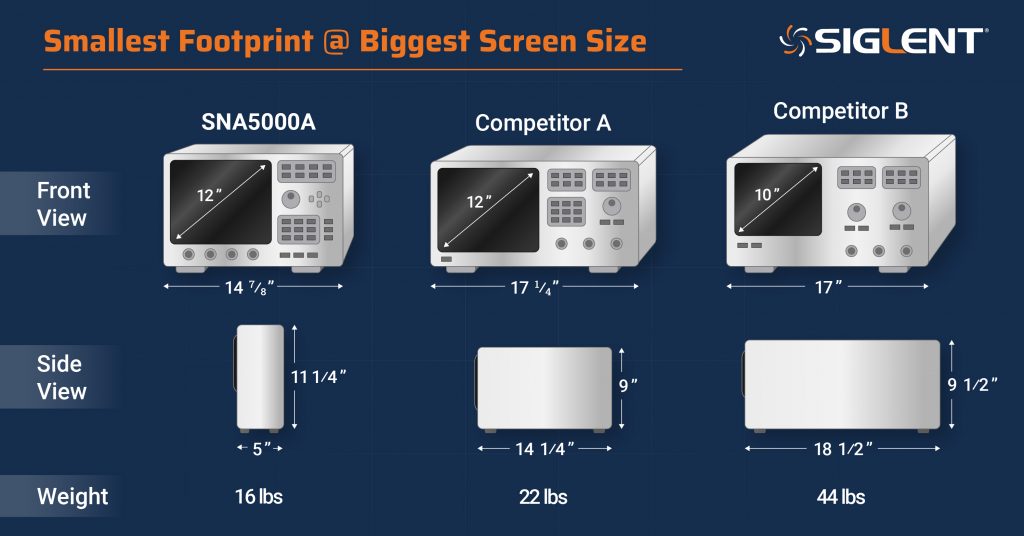

Large Display Small Footprint

Large Display Small Footprint

SNA5000A Vector Network Analyzers features a large touchscreen and user interface with a small footprint that makes it easy to use on the desktop and easier to move around the lab.

Gain Compression Measurement View more

Gain Compression Measurement

Gain Compression Measurement

The function can complete the measurement of compression parameters and linear parameters within the operating frequency through one connection and one calibration. It supports three data acquisition mode and provides linear gain compression, max gain compression, back-off compression, X/Y compression, saturation compression methods to flexibly responding to complex test requirements and ensure comprehensive and accurate characterization of the nonlinear behavior of the device.

Scalar/Vector Mixer Measurement View more

Scalar/Vector Mixer Measurement

Scalar/Vector Mixer Measurement

The function supports various sweep modes such as linear frequency sweep, power sweep and segment sweep, and allows flexible setting of parameters such as source port power, LO port power, and attenuation. The four-port model has built-in dual signal sources, and the second source can be used as the LO or provide the LO signal by controlling an external signal generator. The calibration wizard guides the user through calibration process to provide comprehensive and accurate mixer/converter characteristic measurements.

Extend the Power to Multiport Devices View more

Extend the Power to Multiport Devices

Extend the Power to Multiport Devices

SSM single unit can expand the output ports to 24 and can be easily integrated, greatly adapt to the automatic test system and production line scenarios. The multi-port measurement capability of VNA can improve test throughput and thereby significantly reduce device test costs. Typical applications include design, verification and production of antenna, data converter interfaces, automatic test of RF components and other devices, etc.

Future-Proof Your Material Test View more

Future-Proof Your Material Test

Future-Proof Your Material Test

SIGLENT deliver a comprehensive material measurement solution ideal for lab, manufacture and university environments, including SNA series precision instruments, MT materials measurement software, KWR42A waveguide calibration kit. The measurement wizard guides the user through the measurement process and the results can be plotted in a variety of formats.
