SSA3000X Plus Series Spectrum Analyzers

  • Frequency Range from 9 kHz up to 1.5 GHz / 2.1 GHz / 3.2 GHz / 7.5 GHz
  • -165 dBm/Hz Displayed Average Noise Level (Typ.)
  • -98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)
  • Total Amplitude Accuracy < 0.7 dB
  • 10.1 lnch Multi-Touch Screen, Mouse and Keyboard supported
  • Web Browser Remote Control on PC and Mobile Terminals and File Operation

Product Overview

SIGLENT SSA3000X Plus Spectrum Analyzers are powerful and flexible tools for RF signals and network analysis. With a frequency range up to 7.5 GHz, the SSA3000X analyzers deliver reliable automatic measurements and multiple modes of operation: spectrum analyzer the base, optional functions include RF power measurement, vector signal modulation analysis, reflection measurement, and EMI test.

SSA3000X Plus Spectrum Analyzers’ applications include broadcast monitoring/evaluation, site surveying, S-parameter measurement, analog/digital modulation analysis, EMI pre-compliance test, research and development, education, production, and maintenance.

For a full summary of our RF measurement instruments, view our Spectrum Analyzer Features and Options Tables.

Frequency Range Resolution Bandwidth (RBW) Phase Noise Total Amplitude Accuracy Display Average Noise Level (DANL) Price
SSA3015X Plus 9 kHz ~ 1.5 GHz 1 Hz~1 MHz < -99 dBc/Hz < 1.2 dB -156 dBm/Hz $1,295 Buy Now
SSA3021X Plus 9 kHz ~ 2.1 GHz 1 Hz~1 MHz < -98 dBc/Hz < 0.7 dB -161 dBm/Hz $1,650 Buy Now
SSA3032X Plus 9 kHz~3.2 GHz 1 Hz~1 MHz < -98 dBc/Hz < 0.7 dB -161 dBm/Hz $2,890 Buy Now
SSA3075X Plus 9 kHz~7.5 GHz 1 Hz~3 MHz < -98 dBc/Hz < 0.7 dB -165 dBm/Hz $7,125 Request a Quote
Limited Time Offer



Purchase a new SIGLENT spectrum analyzer and SRF5030T near-field probe kit

to receive a free EMI option activation license



Key Features

  • Spectrum Analyzer Frequency Range from 9 kHz up to 1.5 GHz / 2.1 GHz / 3.2 GHz / 7.5GHz
  • -165 dBm/Hz Displayed Average Noise Level (Typ.)
  • -98 dBc/Hz.@10 kHz Offset Phase Noise (1 GHz, Typ.)
  • Level Measurement Uncertainty < 0.7 dB (Typ.)
  • 1 Hz Minimum Resolution Bandwidth (RBW)
  • Preamplifier Standard
  • Tracking Generator (Included)
  • Analog and Digital Signal Modulation Analysis Mode (Opt.*)
  • Reflection Measurement Kit (Opt.*)
  • EMI Filter and Quasi-Peak Detector Kit(Opt.*)
  • Advanced Measurement Kit/Waterfall chart (Opt.*)
  • 10.1 lnch Multi-Touch Screen, Mouse and Keyboard supported
  • Web Browser Remote Control on PC and Mobile Terminals and File Operation

*New SSA3000X Plus instruments feature approximately 100 hours of free trials of these options. The trial timer is running when the instrument is powered on. After the trial has expired, the function will be disabled/greyed out.

Need more information? Call us now 877-515-5551

Product Characteristics

10.1 lnch Display View more

10.1 lnch Display

10.1 lnch Display

SSA3000X Plus Spectrum Analyzers have a 10.1 lnch Display with a Multi-Touch Screen.

Phase noise View more

Phase noise

Phase noise

Phase noise <-98 dBc/Hz@1 GHz.

Resolution Bandwidth (RBW) View more

Resolution Bandwidth (RBW)

Resolution Bandwidth (RBW)

SSA3000X Plus have a Minimum of 1 Hz Resolution Bandwidth (RBW).

ACPR

ACPR

SSA3000X Plus ACPR in Advanced Measurement Kit.

Noise Level View more

Noise Level

Noise Level

-165 dBm/Hz Displayed Average Noise Level on SSA3000X Plus Spectrum Analyzers.

Monitor in Advanced Measurement Kit View more

Monitor in Advanced Measurement Kit

Monitor in Advanced Measurement Kit

SSA3000X Plus Monitor in Advanced Measurement Kit.

EMI Pre-Compliance Test View more

EMI Pre-Compliance Test

EMI Pre-Compliance Test

CISPR 16-1-1 EMI filter and Quasi-peak Detector , Log scale and Limit line.

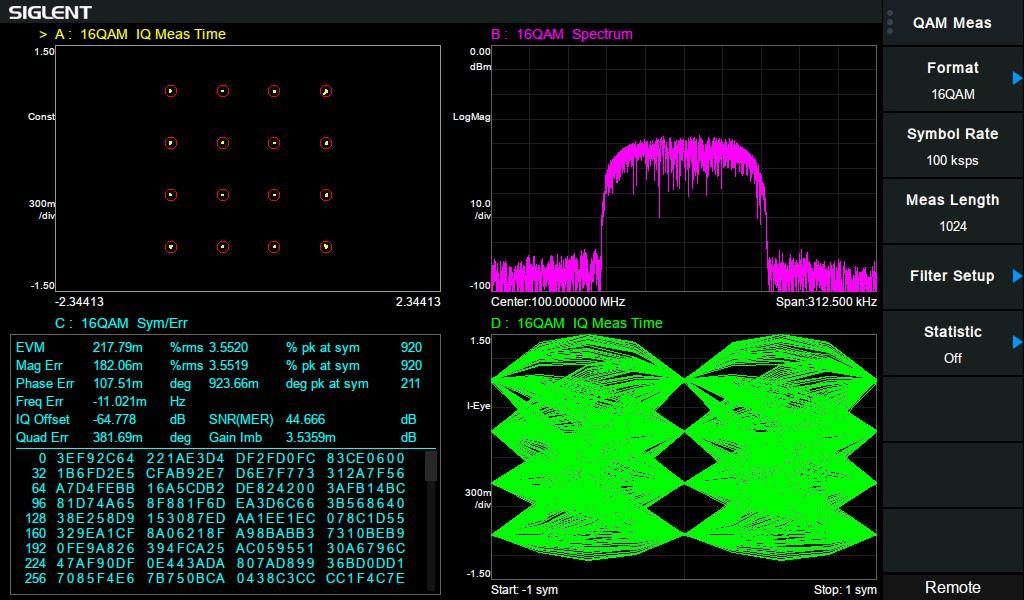

Modulation Analysis Mode View more

Modulation Analysis Mode

Modulation Analysis Mode

SSA3000X Plus AM/FM,ASK/FSK/PSK/MSK/QAM Vector Signal Modulation Analysis, EVM evaluation.

Reflection Measurement View more

Reflection Measurement

Reflection Measurement

VSWR and Return Loss measurement using External Reflection Bridge.

Standard Accessories

Quick Start Guide-SSA

USB Cable

USB Cable

SSA3000XP-TG ($169 value)
