Spectrum Analyzers

Siglent’s innovative spectrum analyzers provide reliable measurement precision and a wide range of RF measurement functions. They incorporate all-digital IF technology and have frequency ranges from 9 kHz to 26.5 GHz for use for almost any application.

Compare Models

Powerful and Reliable Spectrum Analyzers

Siglent’s spectrum analyzers offer a frequency range of 9 kHz up to 26.5 GHz. With their lightweight, small size, and friendly user interface, they present a bright easy-to-read display, powerful and reliable automatic measurements, and plenty of impressive features.

SIGLENT SSA3000X analyzers have free Windows-based remote-controlled software and other models have an onboard Web Control that eases data collection, remote monitoring, and pre-compliance test sequencing.

Applications include research and development, education, production, maintenance, and pre-compliance.

For a full summary of our RF measurement instruments, click on our Spectrum Analyzer Features and Options Tables.

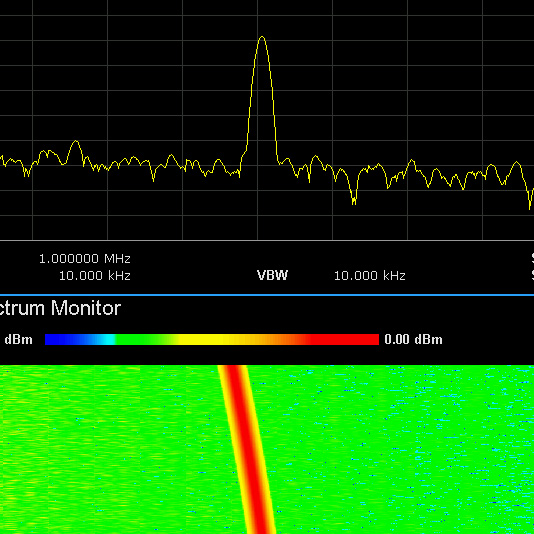

Real Time Spectrum Analysis

Multi-view and dimensions to monitor complex signals

Modulation Analysis

AM/FM, ASK/FSK/PSK/MSK/QAM Vector Signal Modulation Analysis and EVM evaluation

Tracking Generator

SSA3000s have the tracking generator hardware installed for easy component/filter testing

Series Frequency Range Resolution Bandwidth (RBW) Phase Noise Total Amplitude Accuracy Display Average Noise Level (DANL) Price
SSA5000A 9 KHz to 13.6/26.5 GHz 1 Hz~10 MHz <-105 dBc/Hz <0.5 dB -165 dBm/Hz call for quote
SSA3000X-R 9 KHz to 3.2/5.0/7.5 GHz 1 Hz~3 MHz <-98 dBc/Hz < 0.7 dB -165 dBm/Hz $5,190 - $10,790
SSA3000X Plus 9 KHz to 1.5/2.1/3.2/7.5 GHz 1 Hz~3 MHz <-98 dBc/Hz @ 1 GHz, 10 kHz offset (typ.) < 0.7 dB -165 dBm/Hz $999 - $7,125
SSA3000X 9 KHz to 2.1/3.2 GHz 1 Hz to 1 MHz, in 1-3-10 sequence <-98 dBc/Hz @ 1 GHz, 10 kHz offset (typ.) ± 0.7 dB -161 dBm/Hz, Normalized to 1 Hz (typ.) $1,395 - $2,199
SVA1000X 9 KHz to 1.5/3.2/7.5 GHz 1 Hz to 3 MHz, in 1-3-10 sequence <-98 dBc/Hz @ 1 GHz, 10 kHz offset <0.7 dB -165 dBm/Hz, Normalized to 1 Hz (typ.) $1,690 - $8,390
SHA850A 9 kHz to 3.6GHz/7.5 GHz 1 Hz ~ 3 MHz, in 1-3-10 sequence -104 dBc/Hz ±0.7 dB -165 dBm/Hz $4,860 - $7,650

Support and Resources

Application Notes

How do I pick the right spectrum analyzer for my application?

Introduction The SIGLENT SSA3000X, SSA3000X Plus and SVA1000X products are based on a similar swept superheterodyne spectrum analyzer platform and have very similar starting prices. There are quite a few similarities, but also a few differences that could affect the end results for particular applications. The table below compares the major specifications and the comparable … Continued
