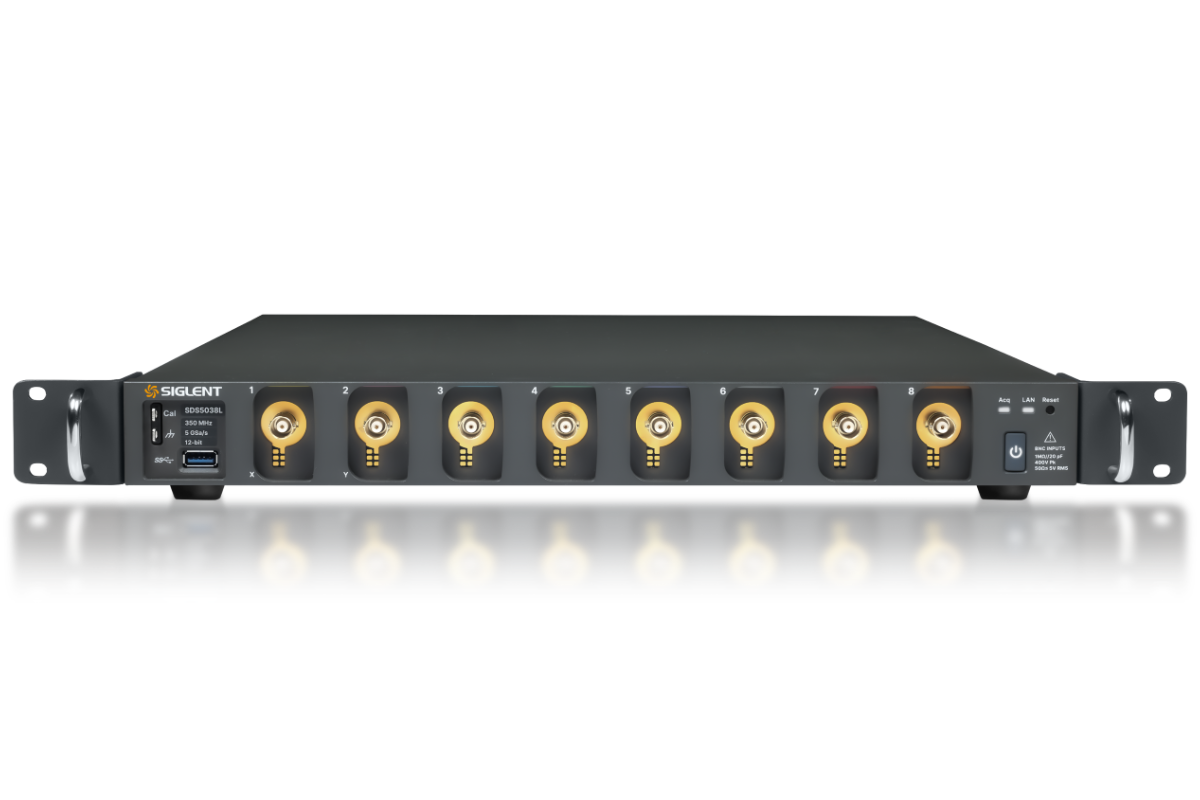

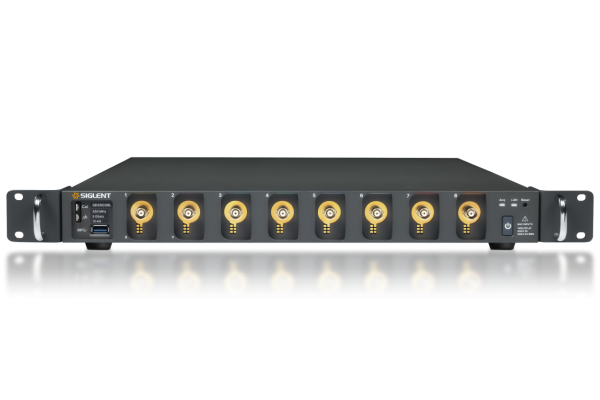

SDS5038L

SDS5038L
SDS5038L - Image 2
SDS5038L - Image 3
SDS5038L - Image 4
SDS5038L - Image 5
SDS5038L - Image 6

SDS5038L

$9,580.00

  • 350 MHz models
  • 8 analog channels + 1 external trigger
  • Sampling rate up to 5 GSa/s
  • Up to 2.5 Gpts/ch waveform length
  • SYNC-64 to Synchronize 64 x SDS5000L
  • Waveform capture rate up to 650,000 wfm/s (Sequence mode)

In Stock

SKU: SDS5038L Category:

Description

SDS5038L are available in 8 channels, bandwidths of 350 MHz, have 12-bit ADCs with sample rate up to 5 GSa/s, maximum record length of 2.5 Gpts/ch. SDS5000L series employs Siglent’s SPO technology with a maximum waveform capture rate of up to 160,000 wfm/s, 256-level intensity grading display function plus a color temperature display mode.

Additional information

Weight 13.7 lbs
Dimensions 15.6 × 16.3 × 1.7 in
