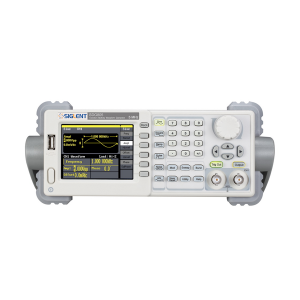

SDG800 Series Function/Arbitrary Waveform Generators

The SDG800 series function/arbitrary waveform generator family outputs waveform functions up to up to 5MHz (pulse), 10MHz (square), 30MHz (sine) and has a sampling rate of 125MSa/s. They are powered with SIGLENT’s EasyPulse technology which produces low jitter, fast rising/falling edges without being affected by frequency, even at low duty cycle settings, allowing the user a wide range of pulse widths and transition times. This results in a much more versatile generator than other similar DDS designs.
