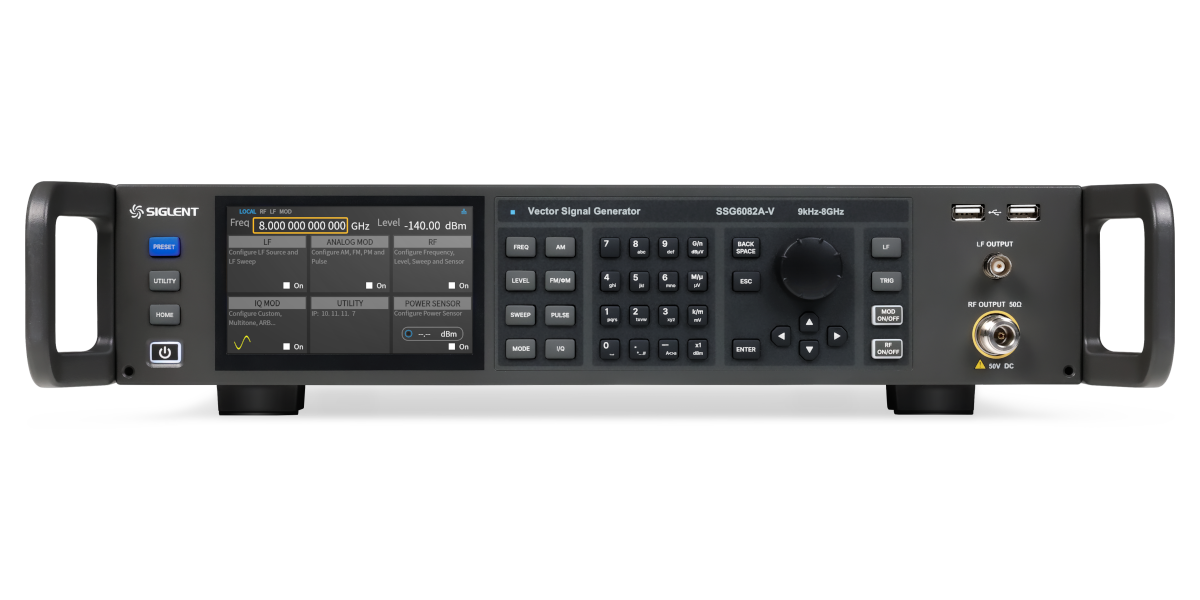

SSG6082A-V Series RF Vector Signal Generator

Frequency up to 8 GHz
0.001 Hz frequency setting resolution
Level setting range: -140 dBm to 30 dBm
Phase noise: < -132 dBc/Hz @ 1 GHz, offset 10 kHz (typ.)
RF modulation bandwidth 1 GHz
Support pre-distorted signals
Support common protocols such as LTE, 5G NR and WLAN, etc.

Product Overview

The SSG6082A-V Vector Signal Generator delivers an output frequency range of 9 kHz to 8 GHz, supporting AM, FM, and PM analog modulation, as well as pulse modulation and pulse sequence generation. Equipped with an internal 500 MHz bandwidth IQ baseband source, it combined with SigIQPro PC software to generate common digital modulated signals and communication protocol signals such as 5G NR, WLAN, LTE, BLUETOOTH, and IoT protocols. With factory calibration, the RF output exhibits excellent 1 GHz broadband characteristics and good ACPR performance, making it suitable for various applications in R&D, production, and other scenarios.

	Frequency Range	Amplitude Resolution	Phase Noise	I/Q Modulation	Price
SSG6082A-V	CW MODE 9 kHz to 8 GHz IQ MODE 10 MHz to 8 GHz	0.01 dB	-132 dBc/Hz @ 1 GHz， offset 10 kHz (typ.)	Yes	Call For Quote	Buy Now

Key Features

Highest Frequency：8 GHz
Output Frequency Resolution：Up to 0.001 Hz
Level Setting Range：-140 dBm to 30 dBm
Phase Noise：< -132 dBc/Hz @ 1 GHz, offset 10 kHz (typical value)
Amplitude Accuracy：≤ 0.7 dB (typical value)
Modulation Support：Supports AM/FM/PM analog modulation, internal and external modulation options.
Pulse Modulation：Supports pulse modulation function, pulse train generator, and user-defined pulse sequences (optional).
General Modulation：Capable of real-time output of QAM, FSK, ASK, PSK, multi-tone, and various other modulated signals.
Supports playback of waveform files and sequences.
Support waveform file playback：waveform sequence generation and playback.
Communication Protocol Signals：Supports generation of common communication protocol signals such as 5G NR, WLAN,LTE, BLUETOOTH, IOT, etc., when used with SigIQPro software.
MIMO and Other Applications：Supports MIMO and various other application scenarios.
Real-time IQ Baseband AWGN：Supports real-time IQ baseband AWGN, allowing accurate control of signal and noise power,simplifying additional measurements and calculations required for receiver measurements.
Power Meter Control Kit：Facilitates power measurement, control of power output, and line loss correction using a power meter.
Vector Mode S-Parameter Compensation：Supports S-parameter compensation in vector mode to optimize the broadband characteristics of the test system.
Web Remote Control：Supports web remote control for convenient remote operation by users.
