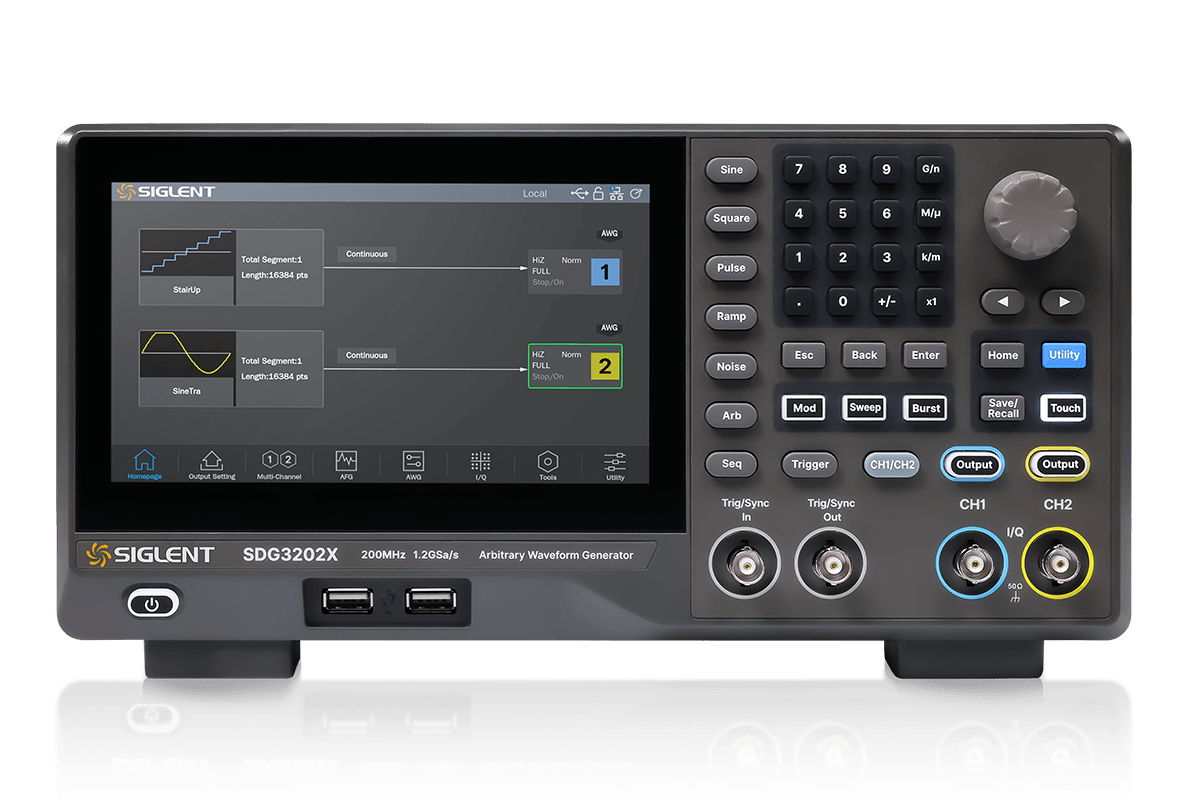

SDG3000X Series Function/Arbitrary Waveform Generators

Output frequency: 80/160/200MHz
Sampling rate: 1.2 GSa/s
Vertical resolution: 16-bit
Arbitrary waveform length: Up to 40 Mpts/ch
Supports dual pulse output function

Product Overview

The SDG3000X series dual-channel function/arbitrary waveform generator has a maximum bandwidth of 200MHz, an excellent sampling system specifications of 1.2 GSa/s sampling rate and 16-bit vertical resolution. Based on the traditional DDS technology, it adopts the innovative TrueArb and EasyPulse technologies, which overcome the inherent defects of DDS technology in outputting arbitrary waves and square waves/pulses, and can provide users with high-fidelity, low-jitter signals. In addition, the SDG3000X also provides PRBS pattern generation, sequence, dual pulse, and vector signal output functions to meet a wider range of application needs.

	Max Output Frequency	Max Sampling Rate	Vertical Resolution	Waveform Length	Channels	Price
SDG3082X	80 MHz	1.2 GSa/s	16-bit	20 Mpts (std) / 40 Mpts (opt)	2 CH	$799	Buy Now
SDG3162X	160 MHz	1.2 GSa/s	16-bit	20 Mpts (std) / 40 Mpts (opt)	2 CH	$1,199	Buy Now
SDG3202X	200 MHz	1.2 GSa/s	16-bit	20 Mpts (std) / 40 Mpts (opt)	2 CH	$1,369	Buy Now

Key Features

Maximum output amplitude 20 Vpp
Rich analog and digital modulation functions: AM, DSB-SC, FM, PM, FSK, ASK, PSK and PWM
Sweep and Burst functions
Harmonic function
Waveform Combining function
196 built-in arbitrary waveforms
Built-in WebServer supports instrument control via web browser
7-inch display touch screen

Need more information? Call us now 877-515-5551

Product Characteristics

Powerful sequence playback function View more

Powerful sequence playback function

Easily set the number of cycle times for each waveform and the order of waveform playback.

It supports up to 1024 segments. During playback, it can also indicate the segment currently being played, allowing you to control the test.

Five operating modes: continuous, triggered, burst, single, and advanced. The advanced operating mode allows you to set the trigger mode for each segment.

Four trigger sources are available: “Auto”, “External”, “Manual” and “Timer”.

Built-in multi-pulse function View more

Built-in multi-pulse function

Built-in dual pulse output function, combined with siglent’s oscilloscope, can quickly measure the switching parameters and dynamic characteristics of power devices without the need for host computer software.
Supports up to 30 pulses, and can set each pulse width and pulse interval.

Customizable polynomial PRBS pattern output View more

Customizable polynomial PRBS pattern output

Provides PRBS3 ~ PRBS32 multiple pattern outputs, with a maximum bit rate of up to 120 Mbps. In addition to outputting single-ended signals, the two channels can also be set to differential output.

In addition to using the built-in PRBS generator polynomial, you can also customize the PRBS generator polynomial to make the test more flexible.

Vector signal output View more

Vector signal output

SDG3000X supports baseband or IF signals and can generate IQ signals of commonly used modulation types such as ASK, FSK, PSK, QAM, etc. SDG3000X can achieve excellent EVM performance at any symbol rate in the range of 250 Symb/s ~ 50 MSymb/s. The built-in digital orthogonal modulator can modulate the IQ signal to any frequency in the range of 200 MHz.
