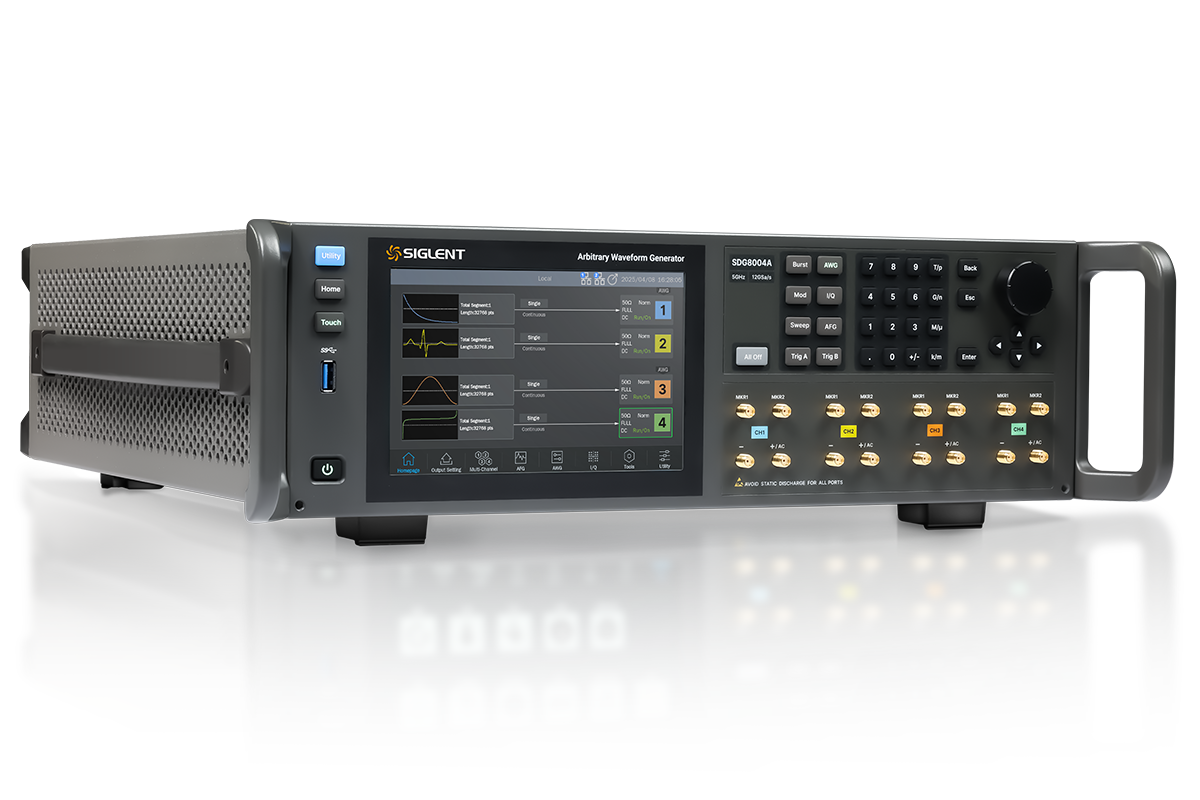

Siglent Arbitrary Waveform Generators
Produce High Fidelity and Low Jitter Signals
SIGLENT’s Arbitrary Waveform Generators includes models with up to 1 GHz bandwidth, 5 GSa/s sample rate, 16-bit vertical resolution and 512 Mpts of memory depth. Common analog and digital modulations, sweep and burst are provided to support complex signal generation. Proprietary TrueArb & EasyPulse technology included in some of the models helps to solve the weaknesses inherent in traditional DDS generators when generating arbitrary, square and pulse waveforms. In addition, the X-series and A-series provide true dual channels with internal waveform combination, flexible phase/channel control and copy/coupling/tracking between channels. The A-series are equipped with differential outputs, digital bus kits, sequence function and 48 V output range. These features enable SIGLENT’s Function and Arbitrary Waveform Generators to provide a variety of high fidelity and low jitter signals, meeting the growing requirements of complex and intensive applications.
![](https://siglentna.com/wp-content/plugins/wp-fastest-cache-premium/pro/images/blank.gif)
Internal Wave Combination
No need for external adapters and cabling. Quickly combine CH1 and CH2 outputs internally (Most SDG models)
![](https://siglentna.com/wp-content/plugins/wp-fastest-cache-premium/pro/images/blank.gif)
Flexible Phase/Channel Control
Lock phases for greater inter-channel phase control. Independent mode smooths parameter transitions (Most SDG models)
![](https://siglentna.com/wp-content/plugins/wp-fastest-cache-premium/pro/images/blank.gif)
True Dual Channels
Independent channels with full specifications for two times the instrument (Most SDG models)
Series | Max Output Frequency | Max Sampling Rate | Vertical Resolution | Waveform Length | Channels | Price |
---|---|---|---|---|---|---|
SDG7000A | 1 GHz, 500MHz, 350MHz | 5G Sa/s | 14-bit | 512 Mpts | 2 Differential/Single-ended | $11,389 - $18,389 |
SDG6000X | 200, 350, 500 MHz | 2.4 GSa/s | 16-bit | 20 Mpts | 2 | $1,525 - $5,490 |
SDG2000X | 40, 80, 120 MHz | 1.2 GSa/s | 16-bit | 8 to 8 Mpts | 2 | $449 - $809 |
SDG1000X | 30, 60 MHz | 150 MSa/s | 14-bit | 16 kpts | 2 | $359 - $490 |
SDG800 | 10, 30 MHz | 125 MSa/s | 14-bit | 16 kpts | 1 | $239 - $269 |
